The ton bag unpacking machine can handle the unpacking and unloading of large bags of powdered and granular materials, and is widely used in industries such as food, medicine, and chemical industry.

Working principle:

The ton bag unpacking machine is used to achieve the unloading function of bagged bulk materials and is a semi-automatic operation. The packaging bag is lifted by an electric hoist, and the bag rope of the packaging bag is hung on a steel bracket. The hoist is manually operated to lift and walk, running along the walking guide rail to the top of the unloading area and dropping. The packaging bag is placed on the bracket tray, so that the large bag is in the unloading position. Then manually open the discharge valve operation door, manually pull the discharge port of the packaging bag into the outlet of the discharge valve. Press the tie button, and the discharge valve locking cylinder will lock the bag port. Then, manually pull the discharge port of the large bag down from the discharge position and cover it on the outside of the discharge pipe inside the sealing box of the discharge port. Press the pneumatic control switch of the bag pressing mechanism to lower the sealing flange and tightly press it on the end of the discharge pipe to seal the discharge channel, To prevent dust during the unloading process, then manually unpack the bag, and finally close the operating door. Manually open the valve on the ventilation and dust removal pipeline connected to the discharge port sealing box. At this point, the unloading preparation process has ended.

Product features:

1. The bag opening station has a simple structure and is easy to operate;

2. The tapping equipment can ensure the smooth entry of materials from the large bag into the next process:

3. The crusher crushes the agglomerates during the bag opening process to ensure the smooth progress of the next process;

4. The magnetic separator can remove foreign objects from the large bag;

5. Fully automated operation. Improve production efficiency and reduce labor intensity;

6. Closed bag opening, preventing dust from flying, improving working environment, and reducing production costs;

7. The integrated design of bag opening, tapping, crushing, and magnetic separation features a compact structure and convenient operation;

8. Can provide pneumatic or electric control methods for remote monitoring;

9. Applicable working conditions: Large bag packaging materials with poor fluidity, easy moisture absorption, and agglomeration;

10. Applicable industries: Pharmaceutical, food, chemical, and other industries involving powders.

Application field:

The ton bag unpacking equipment is widely used in petroleum. In the production fields of chemical industry, chemical fiber, dyes, medicine, food, electronics, papermaking, building materials, power, environmental protection, metallurgy, etc., automatic unpacking and unloading operations can be carried out for any material bag (such as plastic and plastic additives, mixtures, sewage treatment clarifiers, cement and other dry powder, granular materials, powder particle mixtures, and sheet materials).

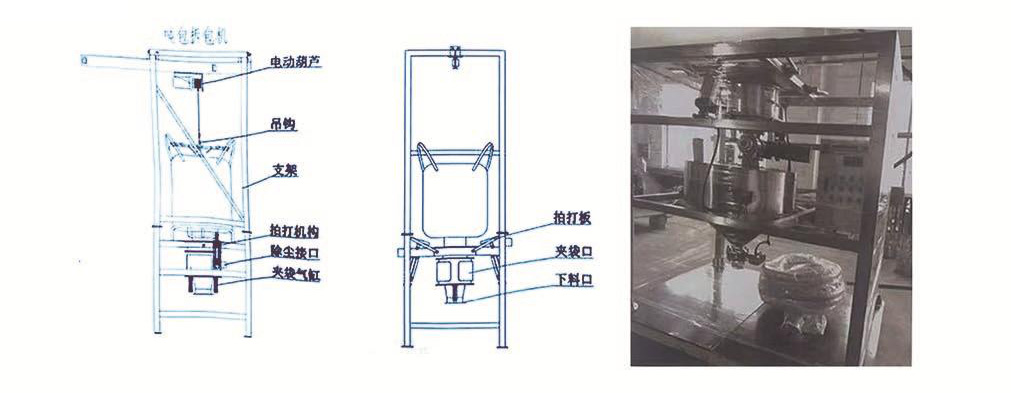

Structural diagram:
